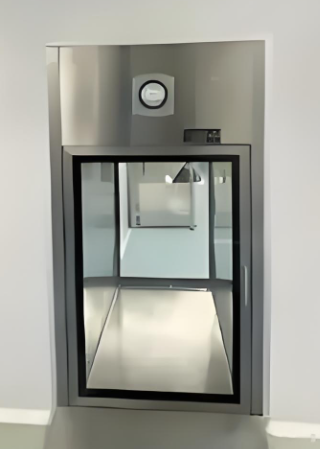

Floor standing transfer window is a device designed specifically for clean rooms, mainly used for transferring items between areas of different cleanliness levels, reducing pollution risks through a double door interlocking device.
Core functions
Double door interlocking: The two doors on both sides are equipped with mechanical or electronic interlocking devices to ensure that they cannot be opened simultaneously and prevent cross contamination.
Structural stability: Directly installed on the ground, with strong load-bearing capacity, suitable for clean transmission scenarios such as laboratories, hospitals, and food processing.
Application scenarios
Clean area transfer: Achieve efficient transfer of items between clean areas and non clean areas, reducing the frequency of door opening.
Industrial scenario: widely used in fields such as electronics, medicine, and food processing to ensure the cleanliness of the production environment.
Material and Characteristics
Material: The main body is made of cold-rolled steel plate or stainless steel, with surface electrostatic spraying treatment, corrosion-resistant and easy to clean.

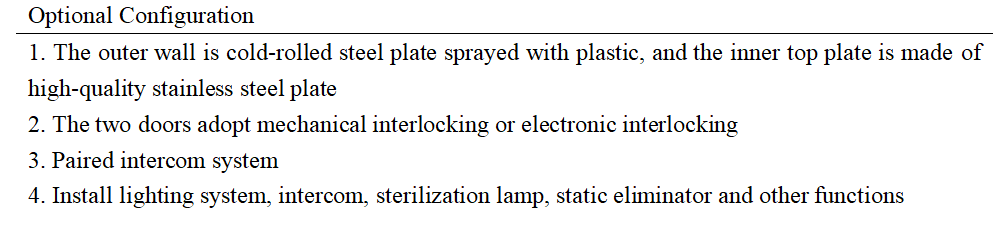

Accessories: Optional UV sterilization, walkie talkie and other additional functions to meet the needs of different scenarios.

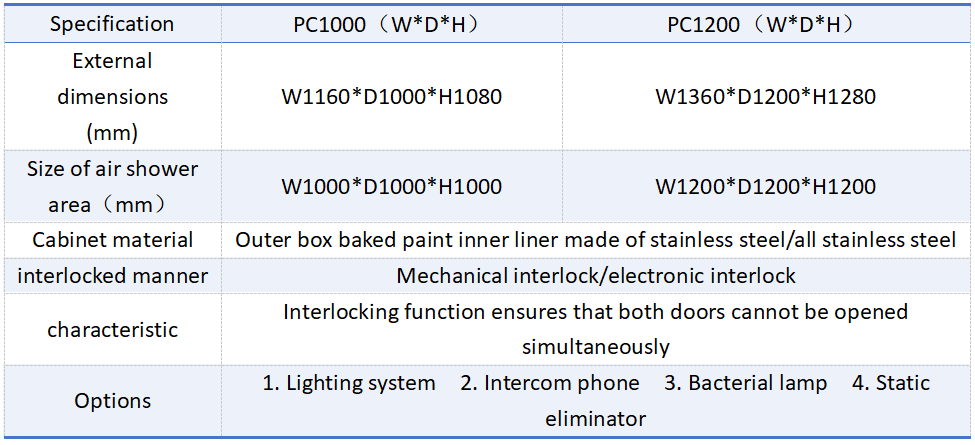

Technical Specifications of the Transfer Window:
