Brief Introduction
The Class 100 Clean Room is a simple clean room designed for quick and convenient construction. It comes in various cleanliness levels and can be customized with different spatial configurations based on usage requirements. Its key features include ease of use, high flexibility, simple installation, short construction time, and portability. Additionally, it can be integrated into standard clean rooms to enhance cleanliness in specific areas, reducing overall costs. This is an air filtration device capable of providing a high-cleanliness environment in localized spaces.
Detailed Introduction to the Class 100 Clean Booth
The Class 100 Clean Booth (also known as a Simple Clean Room or CLEAN BOOTH) is the fastest and most convenient solution for setting up a basic clean room. It can be designed and manufactured with various cleanliness levels and spatial layouts to meet specific needs. Key characteristics include simple operation, high flexibility, easy installation, short construction time, and mobility. The clean booth can also be added to standard clean rooms to enhance cleanliness in critical areas, reducing costs. It is an air filtration device that provides localized high-cleanliness environments. The Tham Quyen Clean Booth primarily consists of a housing, fan, primary air filter, damping layer, lighting, etc., with an electrostatic spray-painted exterior. The product can be suspended or placed on a ground stand, featuring a compact and lightweight structure for easy use. It can be used individually or connected in multiples to form a clean zone.
The Class 100 Clean Booth uses an industrial aluminum frame (or stainless steel/square steel tube with powder coating) and is equipped with a Fan Filter Unit (FFU). The sides are covered with anti-static curtains (or tempered glass), achieving an internal cleanliness level of 100 to 10,000. It is suitable for localized areas requiring very high cleanliness during operations.

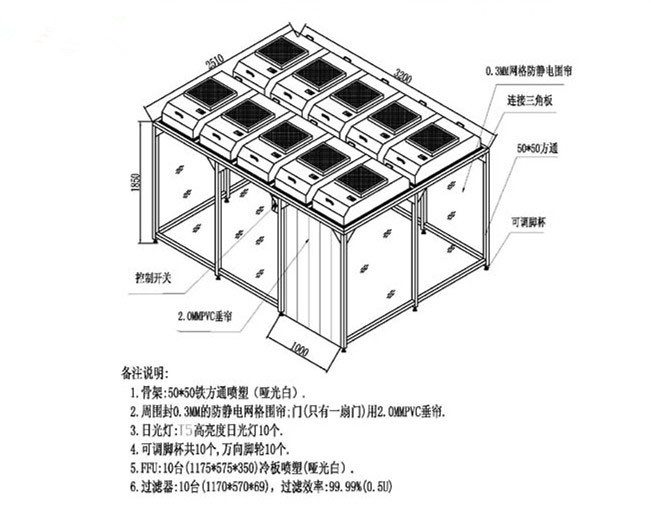

Configuration of the Class 100 Clean Booth:
1. Frame: Made of industrial aluminum (or stainless steel/square steel tube with powder coating), ensuring sturdiness, aesthetics, rust resistance, and no dust generation.
2. Anti-static curtain: The sides use anti-static curtains (or acrylic panels), offering excellent anti-static properties, high transparency, clear visibility, durability, no deformation, and resistance to aging.
3. FFU: Equipped with PCI centrifugal fans (Singapore), featuring long lifespan, low noise, maintenance-free operation, minimal vibration, and stepless speed adjustment. The fans are reliable with a long working life. Combined with an optimized airflow design, efficiency is significantly improved while reducing noise! Internal cleanliness can range from 100 to 100,000; particularly suitable for localized areas in workshops requiring very high cleanliness, such as production lines.
4. Lighting: Uses specialized clean room lighting, dust-free.
Advantages of the Class 100 Clean Booth:
1. Can be used individually or combined in multiples.
2. Compared to permanent (concrete) or modular clean rooms, the clean booth requires lower investment, delivers quick results, is easy to install, and has low operating costs.
3. Modular structure allows easy upgrades in cleanliness levels, good scalability, and high reusability.
4. Easy to relocate (optional multi-directional wheels).
Note: Products can be customized in size based on customer requirements.
